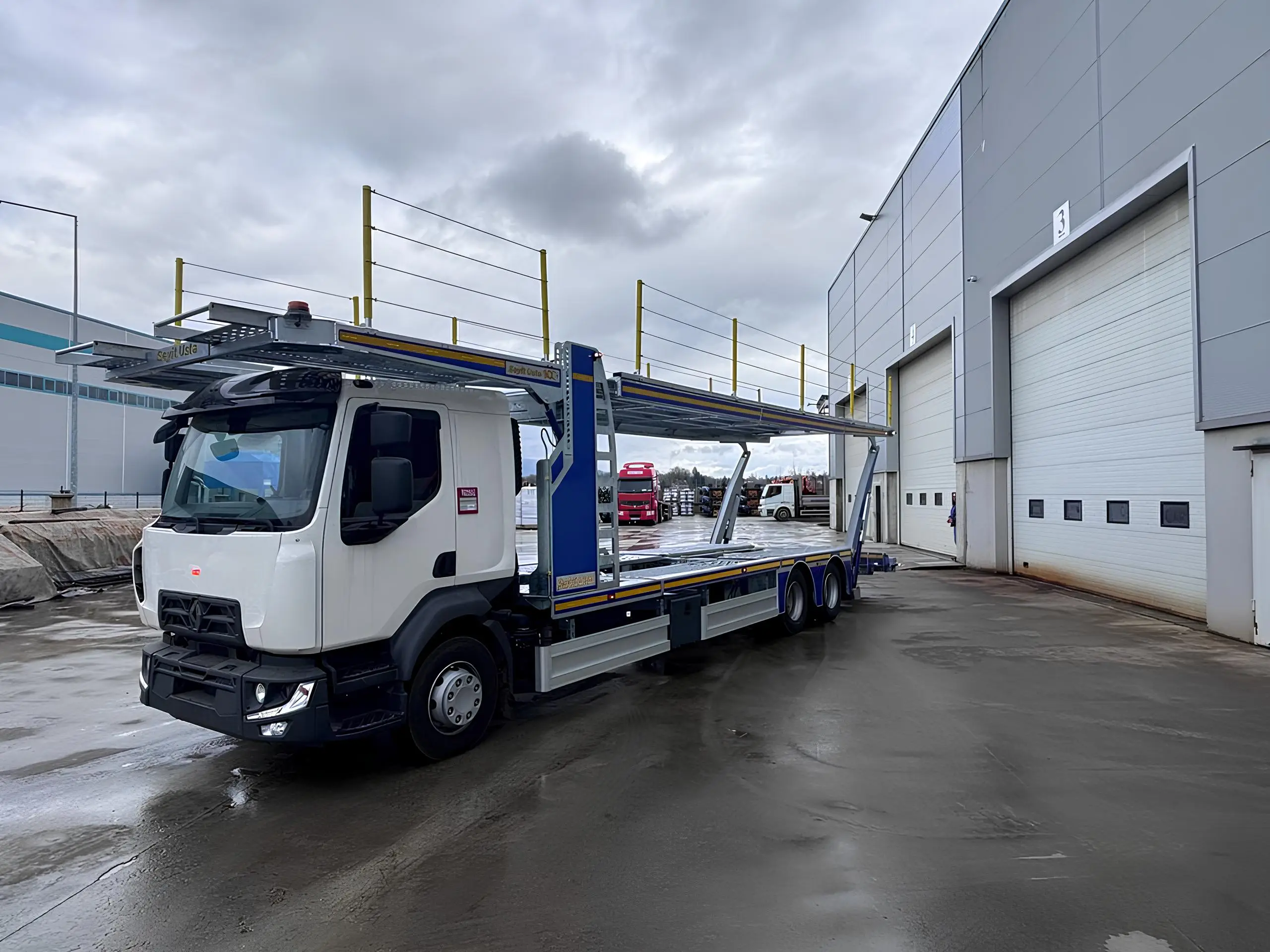

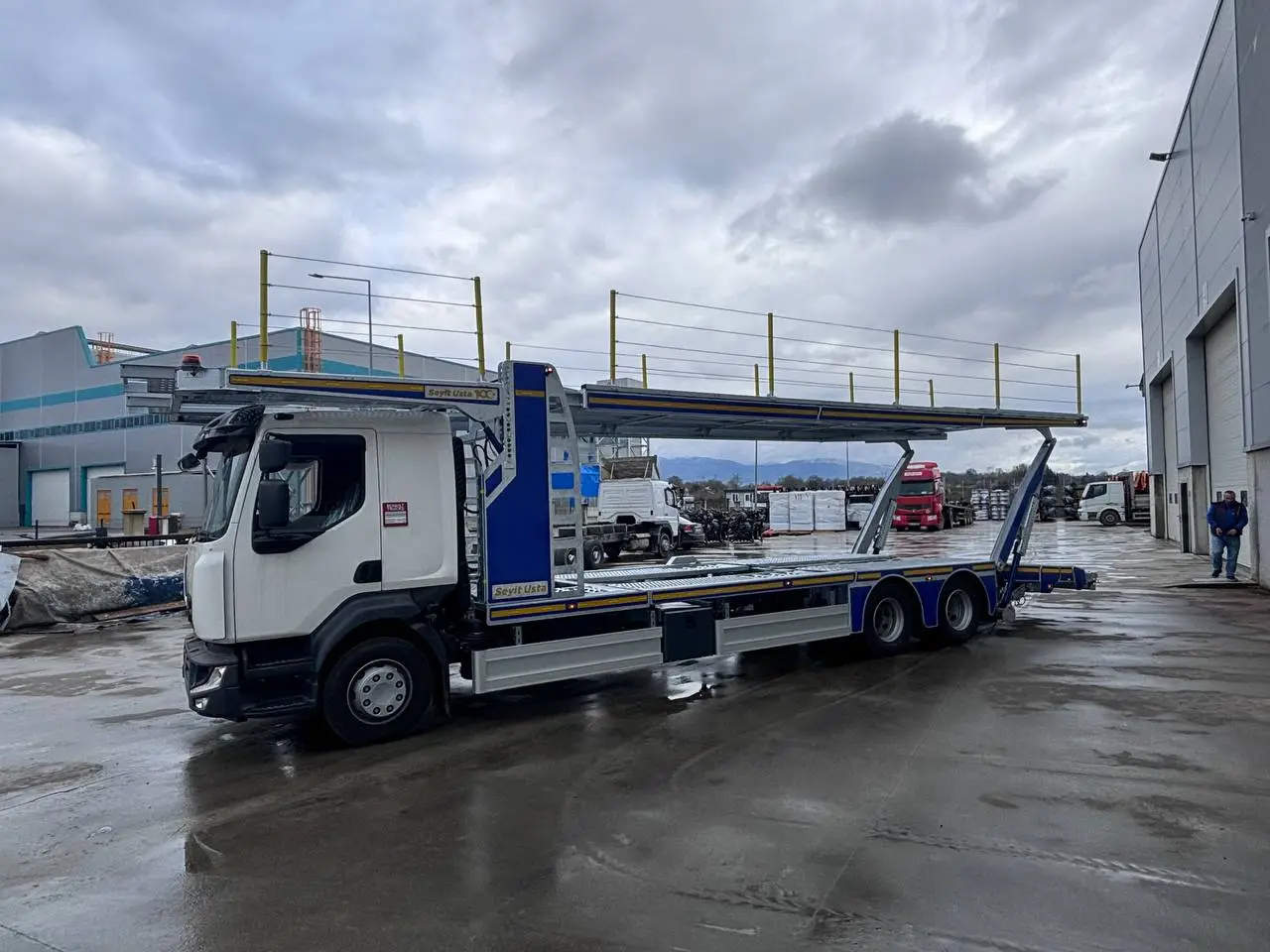

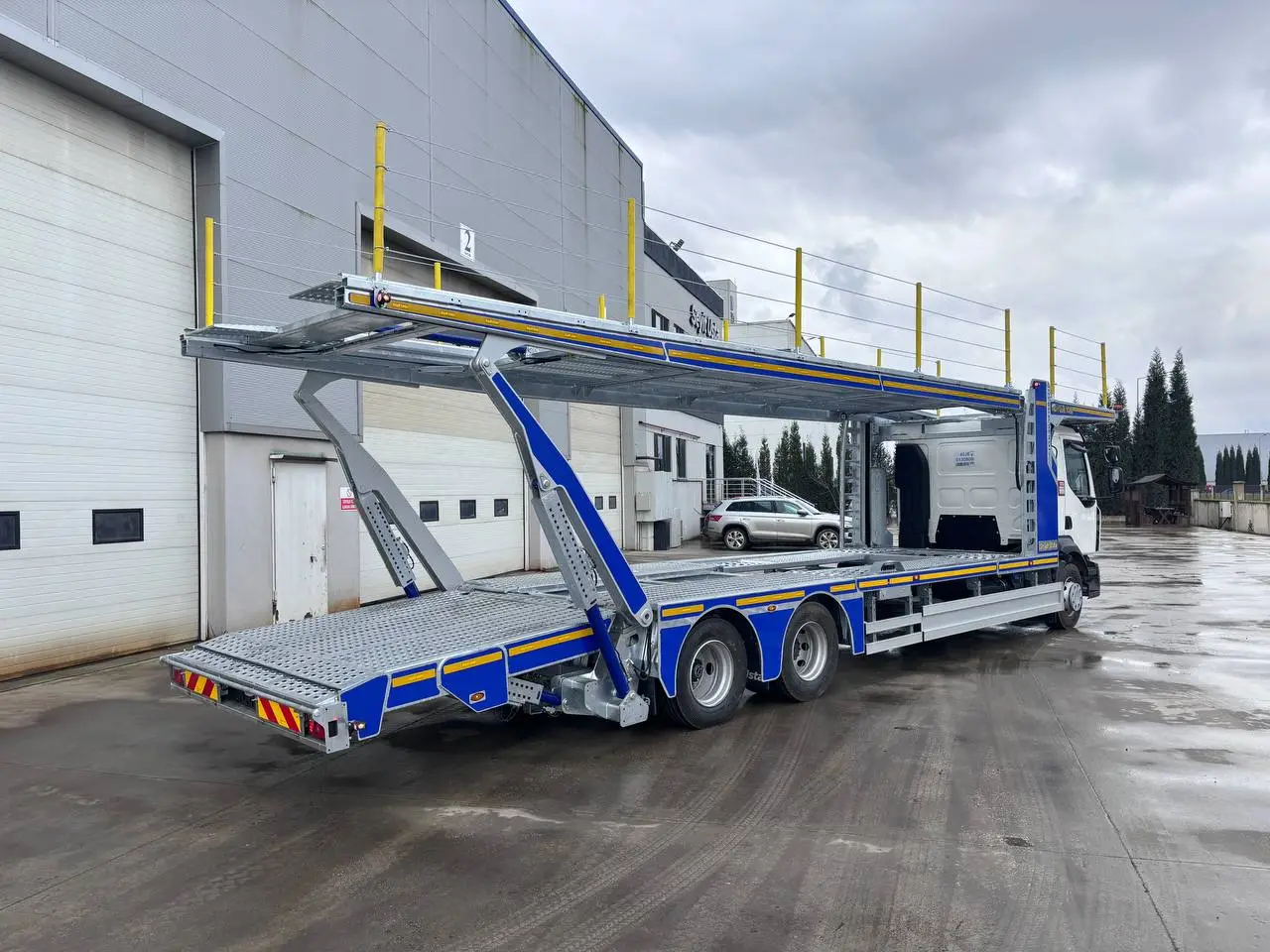

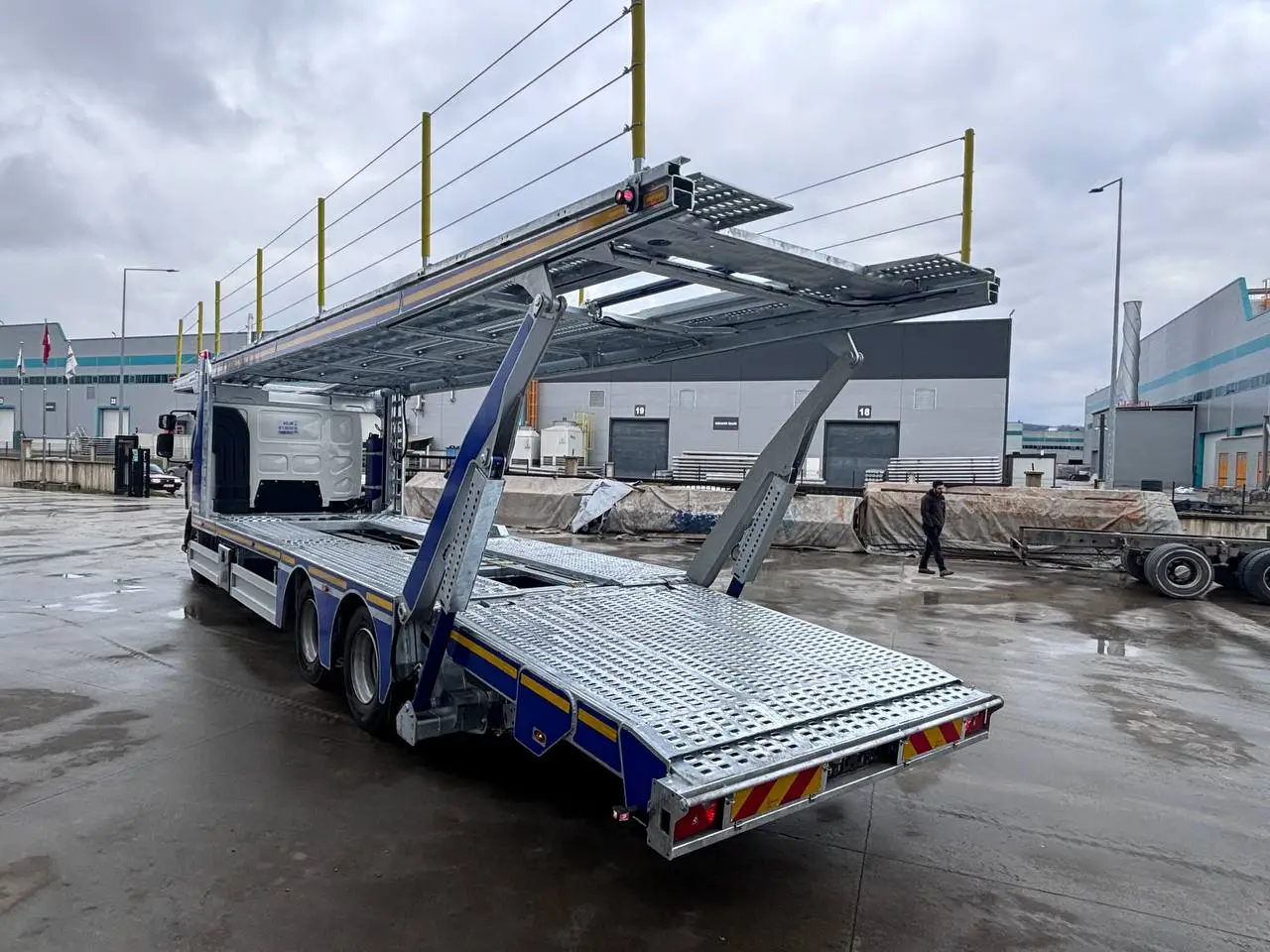

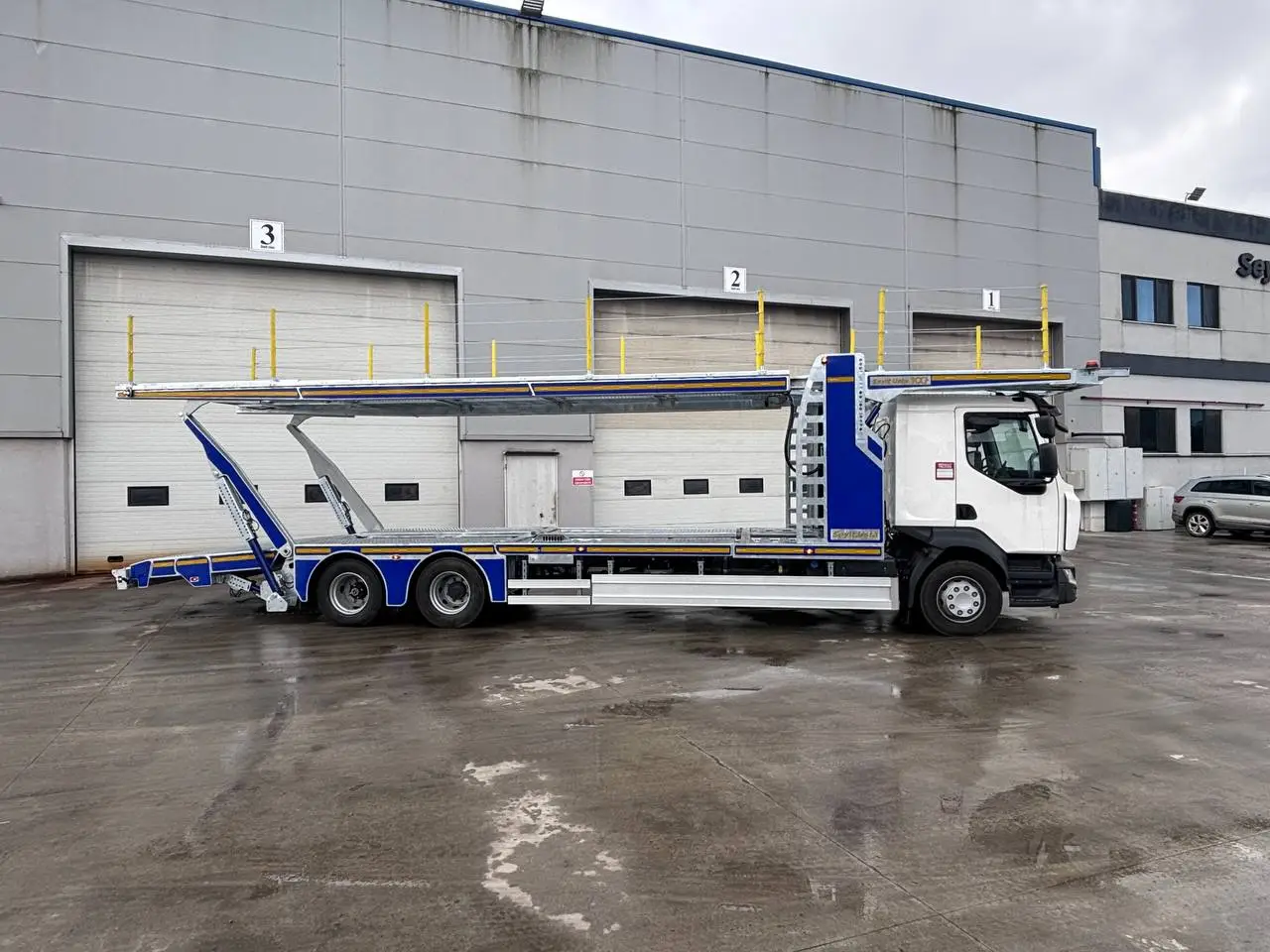

A superstructure system designed for the safe and efficient transportation of passenger vehicles, with a hydraulic system and a capacity to carry up to 5 vehicles. The system provides maximum loading capacity and operational ease thanks to its double-deck transport platform and hydraulic lifting mechanism.
Platform Structure
• The upper platform is movable via a hydraulic lifting system.
• The lower platform is a fixed transport platform.
• Platform surfaces are constructed with a steel structure to prevent tire slipping.
• Tie-down points are integrated into the platform for vehicle securing.
• Platforms are designed with a low loading angle to facilitate easy vehicle loading.
Hydraulic System
• Lifting and lowering of the platform are performed بواسطة hydraulic cylinders.
• The system is powered by a hydraulic pump operating through the vehicle’s PTO system.
• Operation is controlled via manual control valves.
• A pressure relief valve is included in the hydraulic system for safety.
Electrical and Lighting System
• The electrical system of the car carrier superstructure is designed to be compatible with the carrier vehicle’s 24V electrical infrastructure.
• All wiring is installed داخل protective spirals and cable ducts to resist external factors, vibration, and mechanical damage, using water- and dust-resistant connectors.
• The vehicle is equipped with tail lights, signal lights, work lights (on the platform and rear), fog light, license plate illumination, and side marker lights.
• The lighting and reflector system is positioned in compliance with road traffic regulations and relevant ECE standards, with high-visibility reflective markings.
Material and Manufacturing
• The platform and carrier structure are manufactured from high-strength steel (S355).
• Welding processes are carried out in accordance with relevant TS and DIN standards.
• Tolerances are applied in accordance with DIN ISO 2768 standards.
Surface Treatment
• Full galvanization is applied to ensure longer service life and reduced maintenance costs.
• Aluminum cladding with paint in the requested color is applied to the side surfaces of the vehicle.
