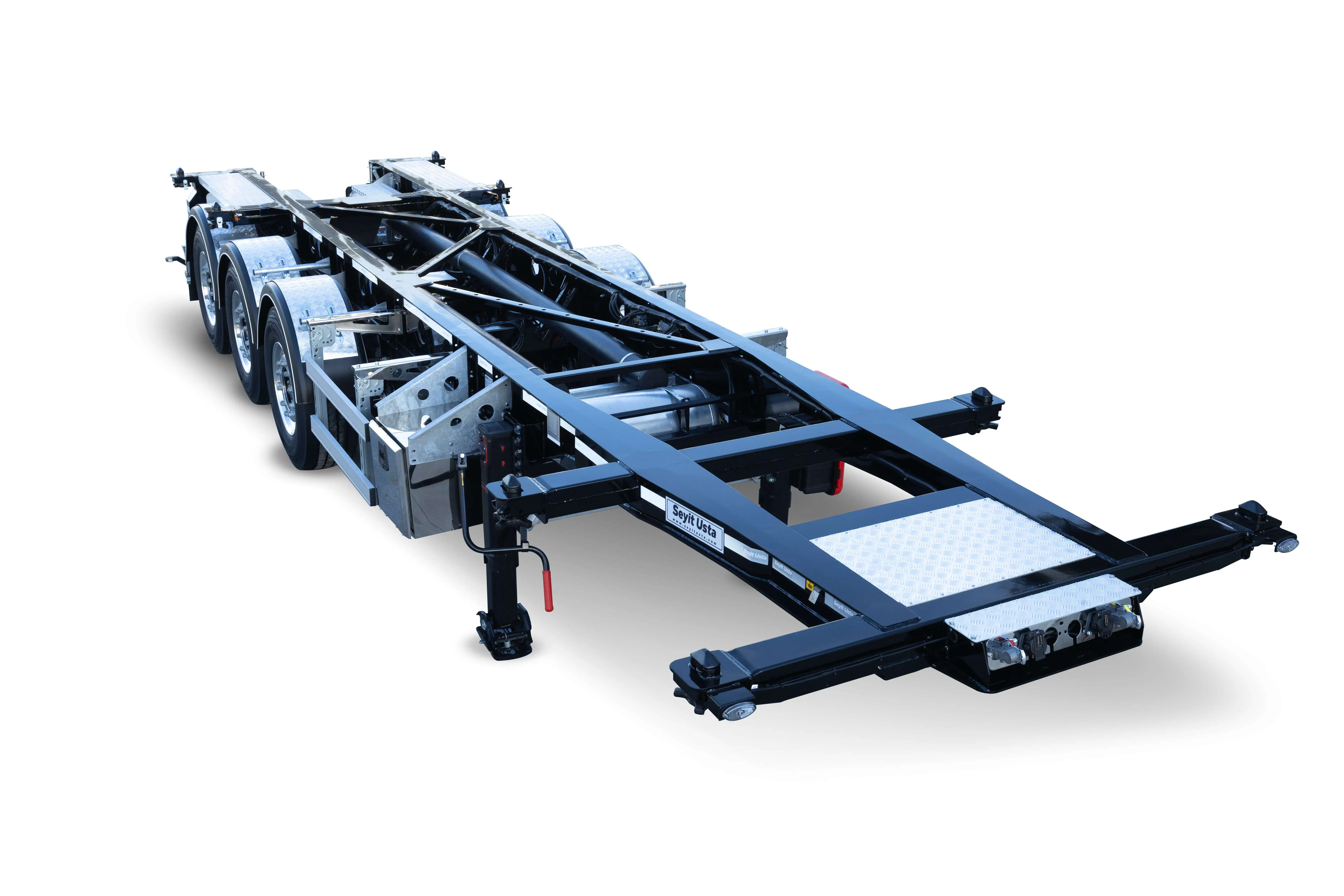

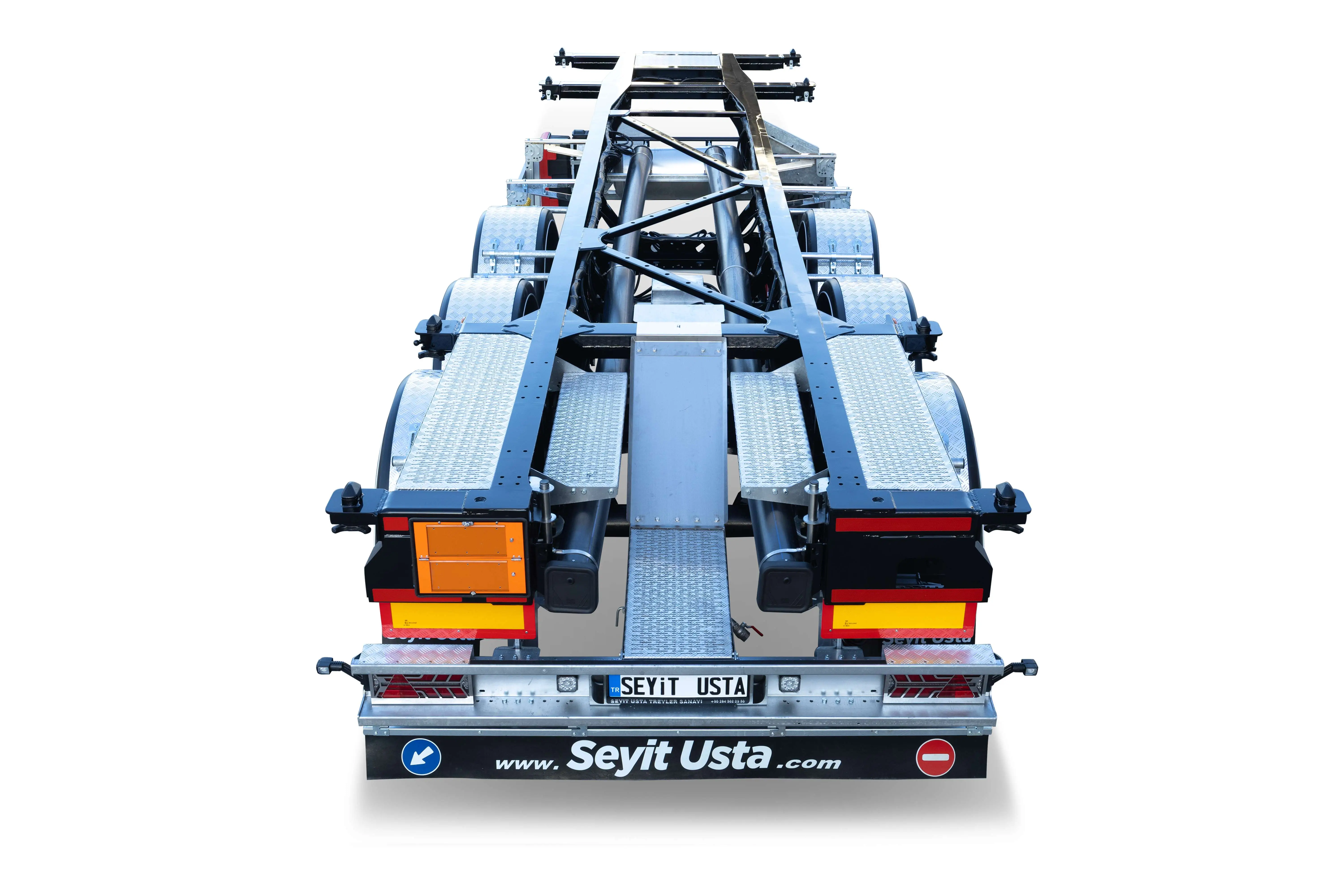

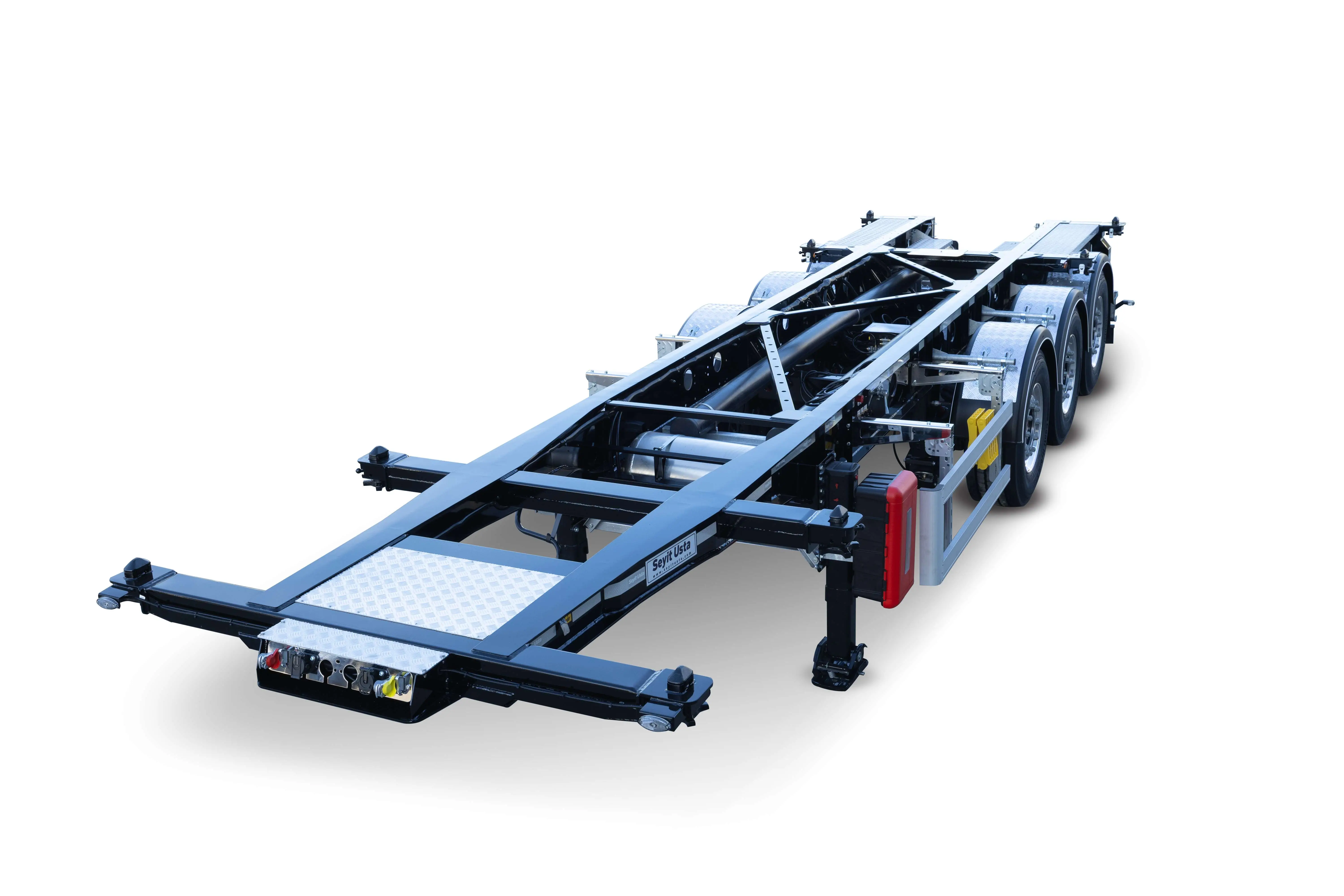

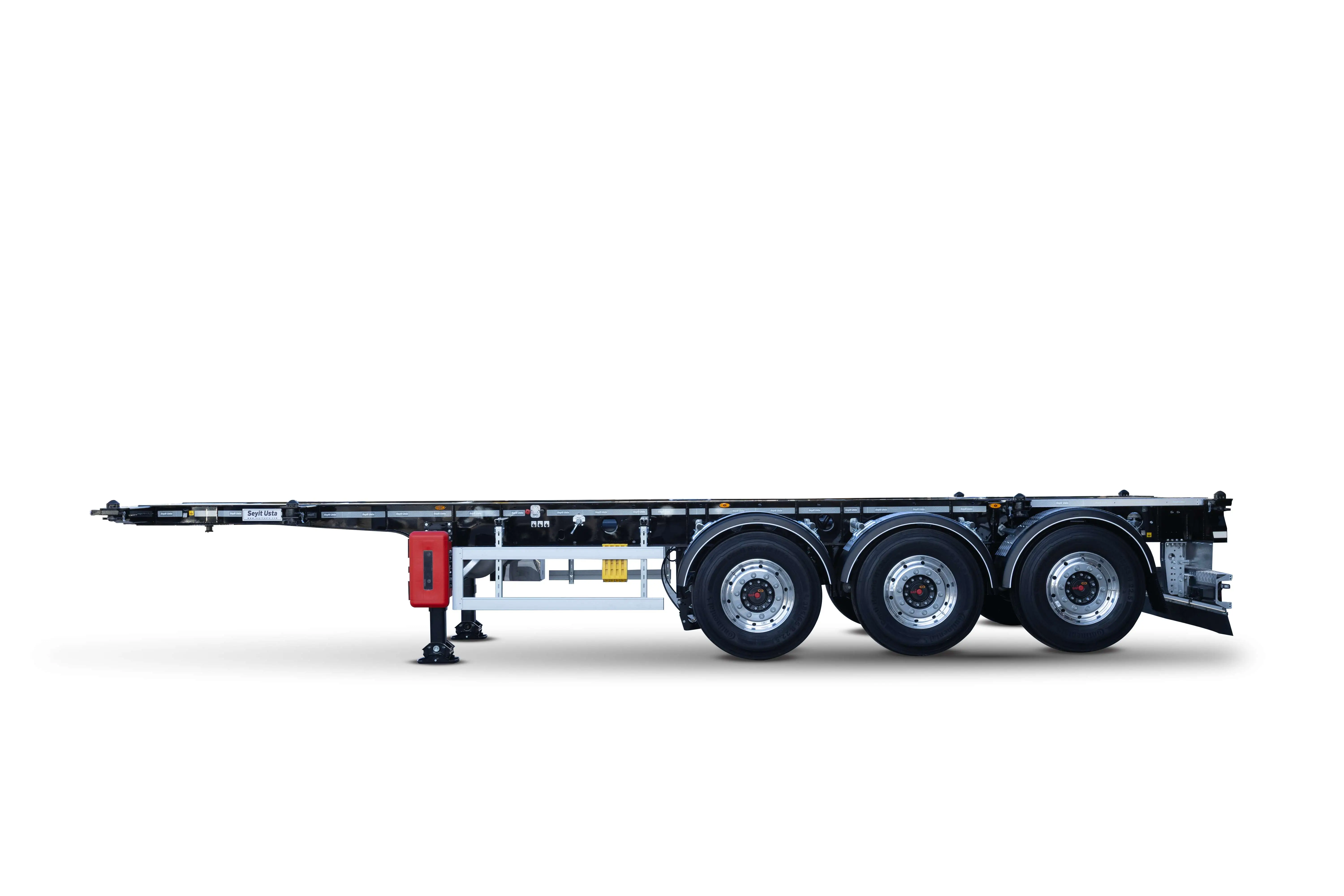

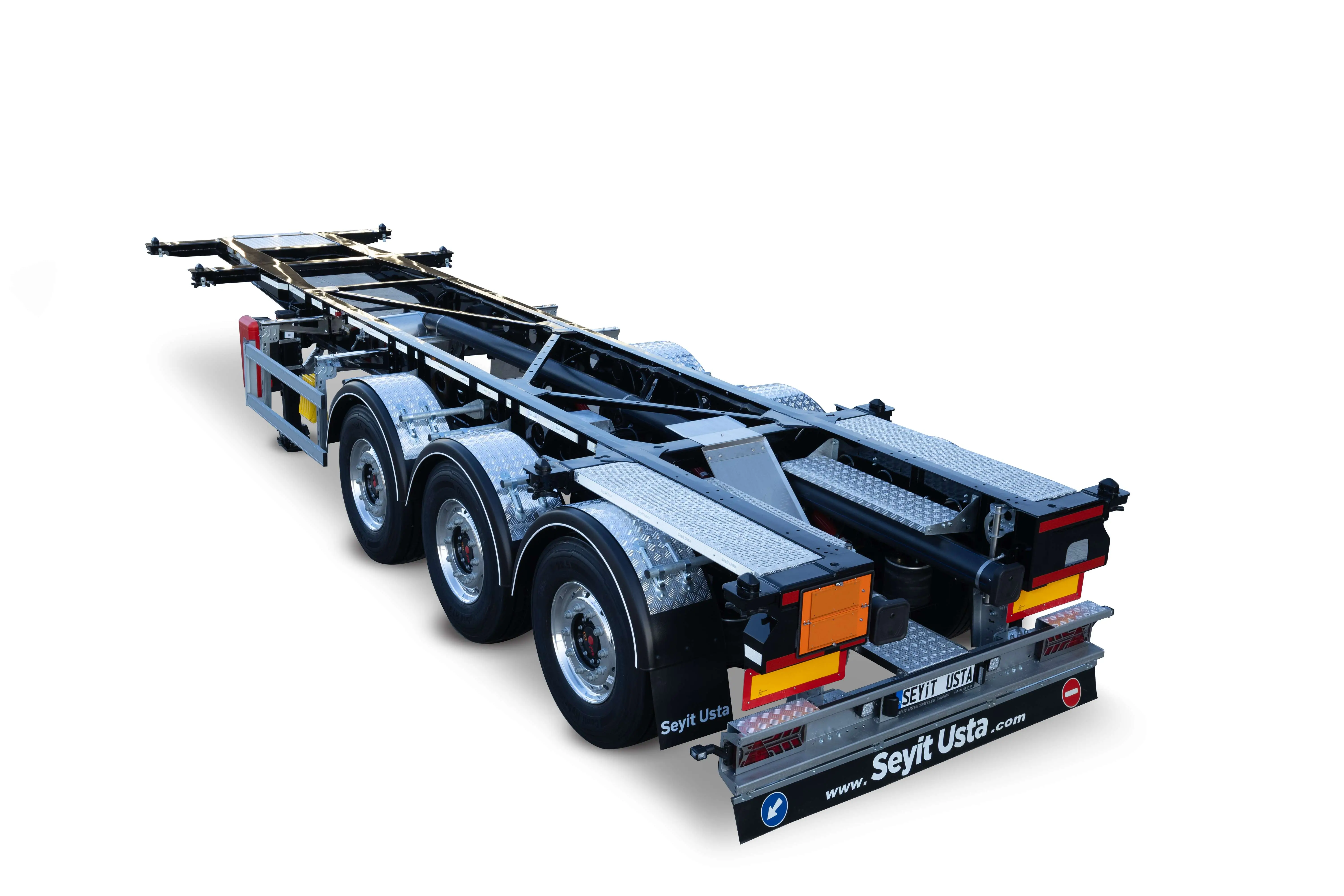

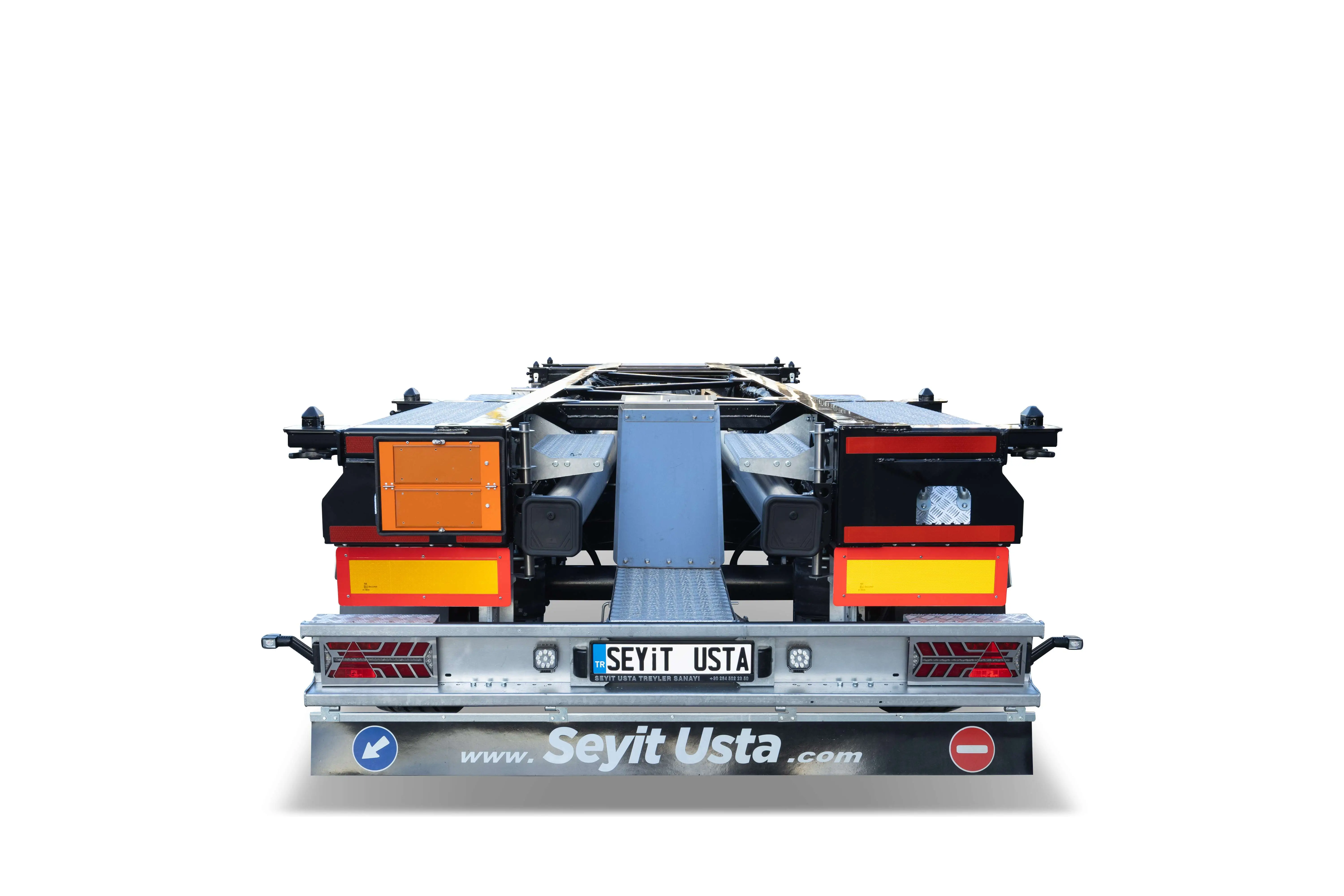

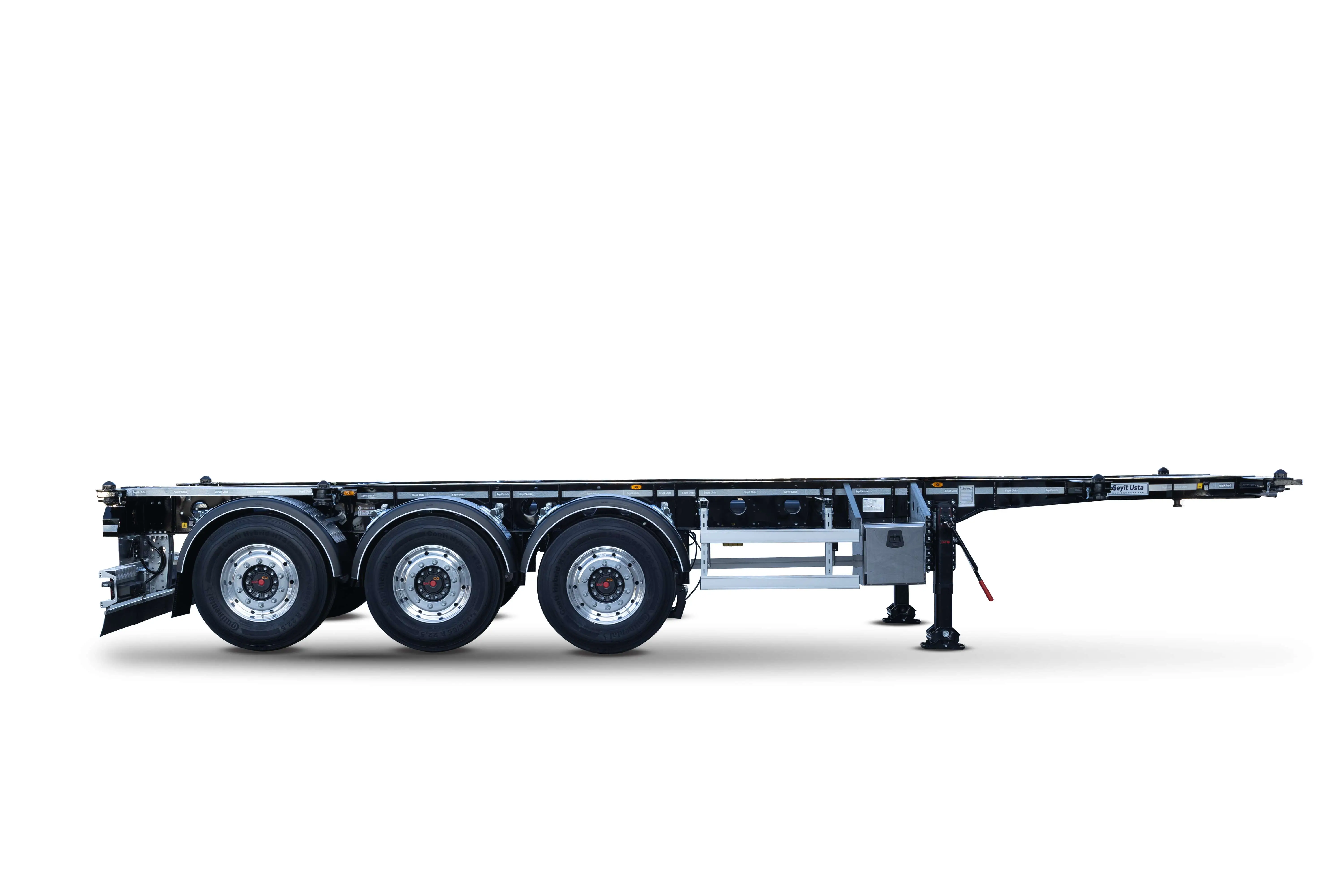

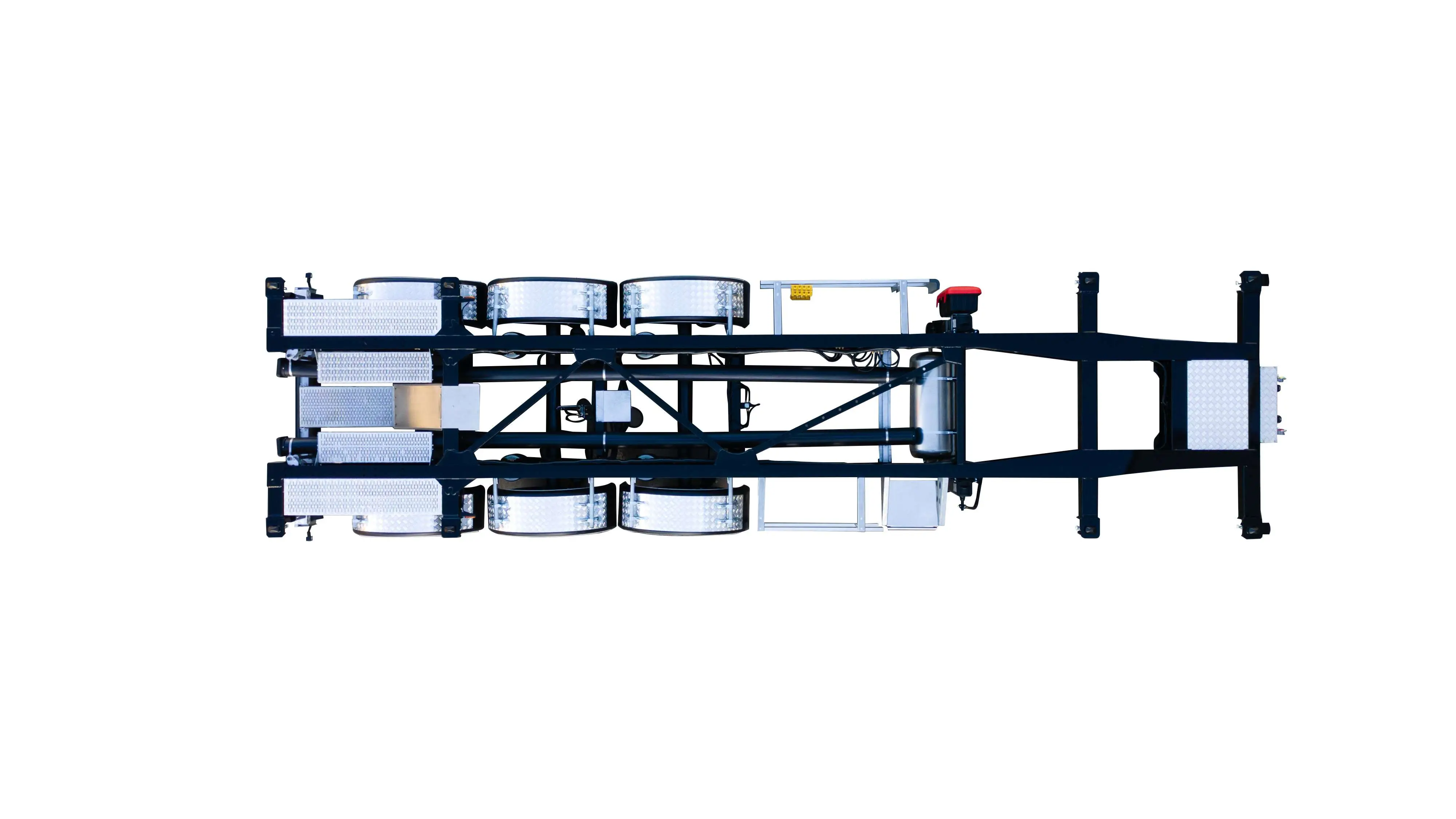

Chassis
- High-strength I-beam chassis made of St MC 700 quality steel
- 2-inch king pin (SAF / JOST) compliant with SAE and DIN standards
Usage & Compatibility
- Suitable for transporting 20 ft & 30 ft containers and swap tanks
- ADR-certified container locking systems
- Designed for hazardous material transportation
Running Gear
- 3 axles (SAF / BPW) with disc brakes
- Original air suspension system
- Load and brake-sensitive front axle lifting system with road assistance
- 385 / 65 R22.5 Class A tires
- TPMS (Tire Pressure Monitoring System)
Brake, Air & Lighting System
- EBS braking system (2S / 2M) compliant with standards
- Emergency backup valve and fail-safe braking system
- Height adjustment control lever for ramp alignment
- 24V lighting system including:
- LED front position lights
- Side marker lamps
- Rear tail lights
- License plate illumination
- 2 × 7-pin + 15-pin electrical sockets
Equipment & Accessories
- 24-ton capacity dual-speed telescopic landing legs (SAF / BPW)
- Imported FRP mudguards
- Perforated aluminum sheet covering on rear section
- Stainless steel liquid collection tray and drainage valve
- Fire extinguisher box
- Wheel chocks
- Mandatory warning reflectors and reflective tapes
Surface Treatment & Protection
- Sandblasted to SA 2.5 standard and coated with epoxy primer
- Corrosion-resistant double-layer acrylic paint, color selectable from RAL catalog
